Product Description
Model version update: AF4915MZT
The Dino-Lite 5MP Edge AM7915MZT delivers high-resolution imaging with a magnification range of 10x – 220x. This model combines popular image processing feature Extended Depth of Field (EDOF), Extended Dynamic Range (EDR), and Automatic Magnification Reading (AMR). EDOF is an easy-to-use focus stacking feature which captures several images at different focus points and stacks them automatically into one clear image. For high contrast or reflective surfaces, EDR reveals the details of dark or bright areas, by stacking images taken at different exposure levels.
SPECIFICATIONS
| Automatic Magnification Reading (AMR) | Yes | Operating System | Windows |
| Extended Depth of Field (EDOF) | Yes (Windows PC required) | Frame Rate (max) | 30 fps |
| Enhanced Dynamic Range (EDR) | Yes (Windows PC required) | Dimensions | 10.5cm (L) x 3.2cm (D) (4.13" x 1.26") |
| Depth Acquisition (DPQ) | No | Weight | 135g (4.76oz) |
| Polarization | Yes | Cable Length | 182cm |
| Magnification Range | 10x - 220x | Imaging Standards | UVC |
| LEDs | White (8) | Warranty Period | 2 years |
| Working Distance | Standard | Emission Wavelength (Filter) | N/A |
| Body Material | Metal | Excitation Wavelength (LED) | N/A |
| Wireless Adapter | WF-10 (not included) | Manufactured in | Taiwan |
| Microtouch Sensor | Yes | Regulatory Approval | CE, FCC |

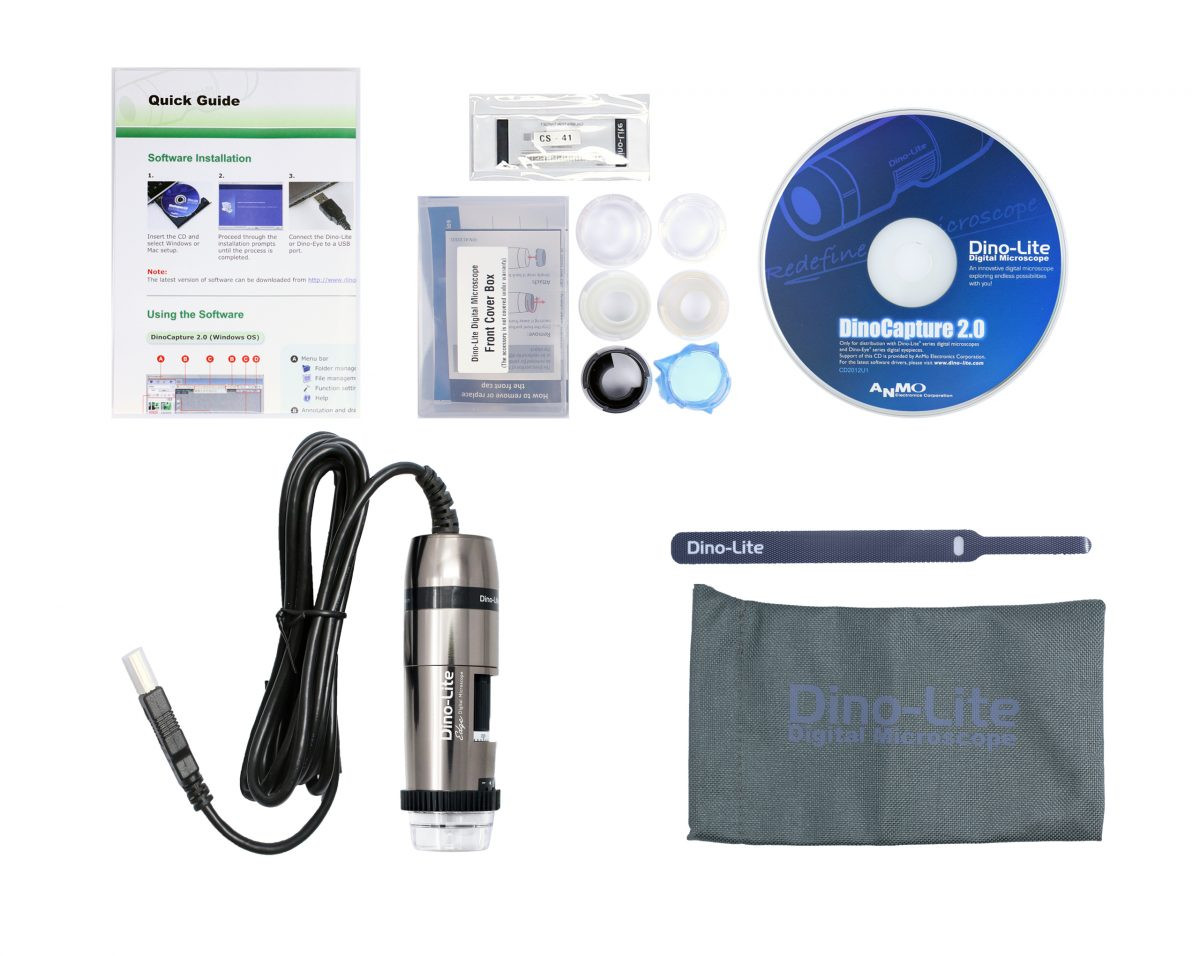

| Magnification Lock | Yes | In the Box | Microscope, Carry Pouch, Software CD, Edge Calibration Target, Alternate end caps |
CHARTS
MM
| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
| Working Distance | 60.2 | 33.5 | 20.9 | 13.9 | 4.1 | 5.6 | 9.9 | 11.9 |
| Field of View | 19.5 x 15.6 | 13 x 10.4 | 9.8 x 7.8 | 7.8 x 6.3 | 3.9 x 3.1 | 2.6 x 2.1 | 2 x 1.6 | 1.8 x 1.4 |
| Depth of Field | 2.5 | 1.8 | 1.5 | – | – | – | – | 0.1 |
INCH
| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
| Working Distance | 2.37 | 1.319 | 0.823 | 0.547 | 0.161 | 0.22 | 0.39 | 0.469 |
| Field of View | 0.768 x 0.614 | 0.512 x 0.409 | 0.386 x 0.307 | 0.307 x 0.248 | 0.154 x 0.122 | 0.102 x 0.083 | 0.079 x 0.063 | 0.071 x 0.055 |
| Depth of Field | 0.098 | 0.071 | 0.059 | – | – | – | – | 0.004 |
