Product Description

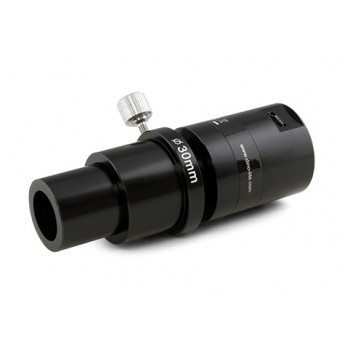

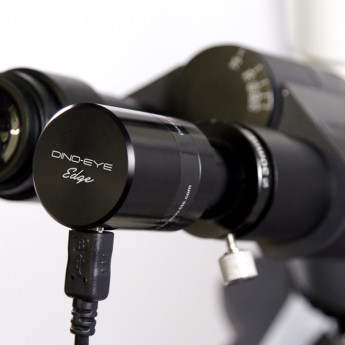

The high-quality Edge Series class optics and high-resolution sensor are now available as a 1.3MP version with the Dino-Eye Edge Series AM4025X. This eyepiece camera offers remarkable image performance while providing a relatively larger field of view than its predecessors. The AM4025X design and included adapters allows for fitment within 23mm, 30mm, 30.5mm or c-mount eyepiece slots which can be fixed into ideal focal positions. AM4025X delivers sharp images with authentic color while a large Field of View for revealing more details.
SPECIFICATIONS
| Resolution | 1280 × 1024 pixels | Connection Type | USB 2.0 |
| Megapixels | 1.3MP | Operating System | Mac OS, Windows |
| Frame Rate (max) | 30 fps | Dimensions | 8.0cm (H) x 3.2cm (D) |
| Base Magnification | Equivalent to 20x | Weight | 117g |
| Base Diameter | 23mm | Cable Length | |
| Measurement | Yes | Warranty Period | 2 years |
| Body Material | Metal | Manufactured in | Taiwan |

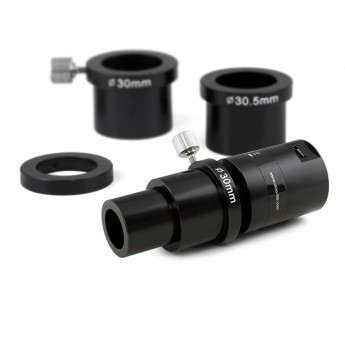

| Package includes | Camera, Edge Calibration Target, 30mm & 30.5mm Adapters | Regulatory Approval | CE, FCC |
