Product Description

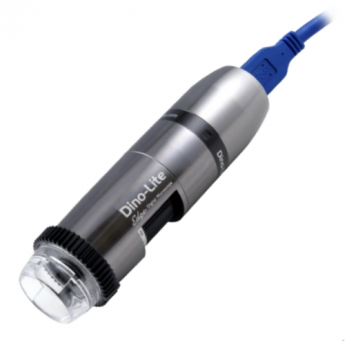

Dino-Lite Edge AM73915MZT is a USB 3.0 model providing uncompressed viewing to deliver exceptional sharpness, improved color accuracy and image quality with a magnification range of 10x – 220x. By using USB 3.0 the AM73915MZT is capable of providing 45FPS at 1280 x 960 resolution, allowing this microscope to be used in a wider range of more demanding applications.
This model also includes the popular Extended Depth of Field, Depth Acquisition – DPQ, (EDOF/DPQ are available on Windows only) and Automatic Magnification Reading (AMR). EDOF allows users to automatically capture multiple images and different depths and automatically combine them into one clear image. Flexible LED Control (FLC) enables partial illumination control options to enhance edge contrast and provides intensity adjustment for better adaptability, combined with the built-on polarizer, interchangeable front caps, and rugged metal housing.
- USB 3.0 Dino-Lite Information
- How to acquire depth information with DPQ (Online Guide)
- How to acquire depth information with DPQ (PDF File)
SPECIFICATIONS
| Measurement & Calibration | Yes | Connection Type | USB 3.0 |
| Flexible LED Control (FLC) | eFLC (Enhanced FLC) | Resolution | 2560 x 1920 pixels |
| Automatic Magnification Reading (AMR) | Yes | Operating System | Mac OS, Windows |
| Extended Depth of Field (EDOF) | Yes (Windows PC required) | Frame Rate (max) | 45 fps |
| Enhanced Dynamic Range (EDR) | Yes (Windows PC required) | Dimensions | 11.9cm (L) x 3.3cm (D) |
| Depth Acquisition (DPQ) | Yes (Windows PC required) | Weight | 110g (3.88oz) |
| Polarization | Yes | Cable Length | 182cm |
| Magnification Range | 10x - 220x | Imaging Standards | UVC |
| LEDs | White (8) | Warranty Period | 2 years |
| Working Distance | Standard | Emission Wavelength (Filter) | N/A |
| Body Material | Metal | Excitation Wavelength (LED) | N/A |
| Wireless Adapter | N/A | Manufactured in | Taiwan |
| Microtouch Sensor | Yes | Regulatory Approval | CE, FCC |

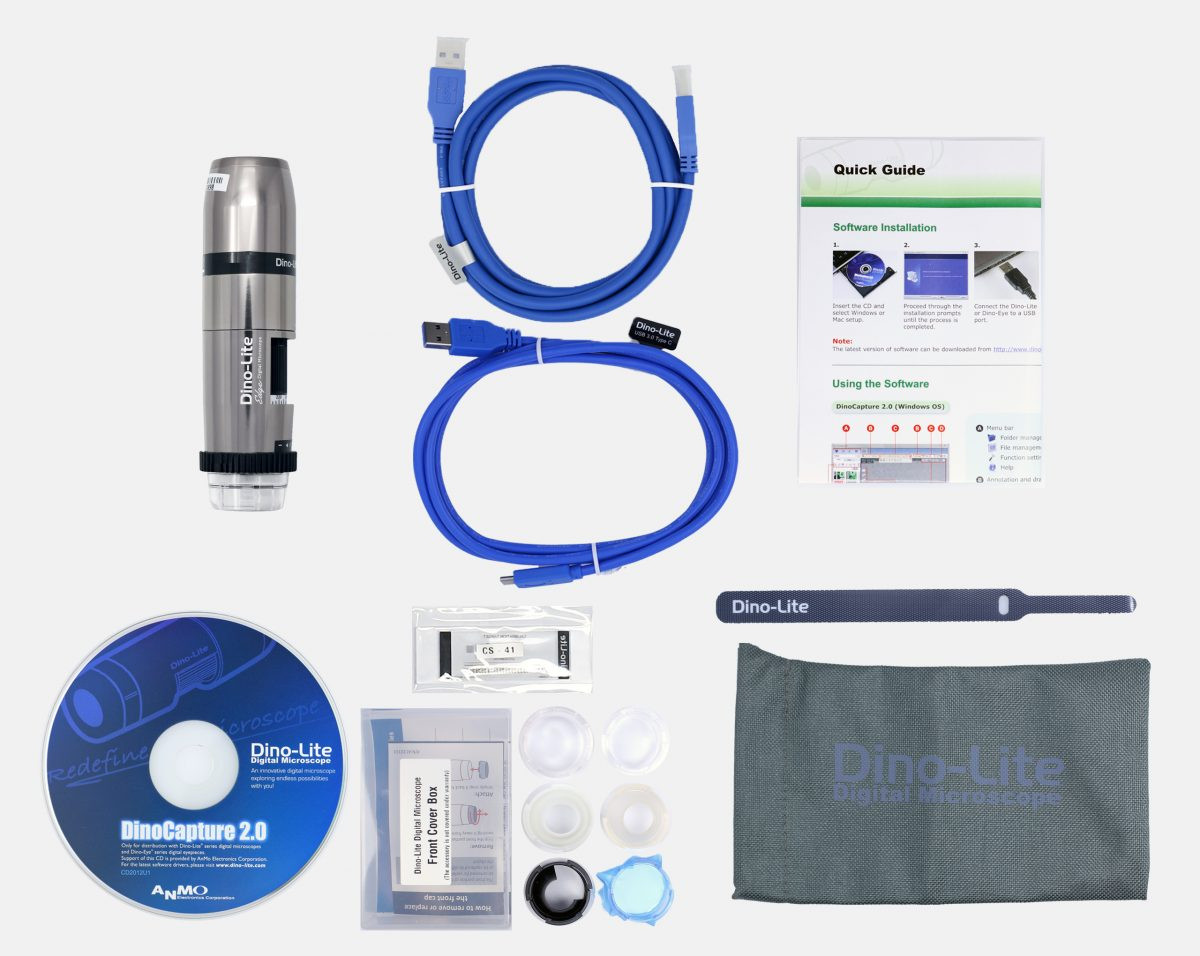

| Magnification Lock | Yes | In the Box | Microscope, Carry Pouch, Software CD, Edge Calibration Target, Alternate end caps |
CHARTS
MM
| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
| Working Distance | 60.2 | 33.5 | 20.9 | 13.9 | 4.1 | 5.6 | 9.9 | 11.9 |
| Field of View | 19.5 x 15.6 | 13 x 10.4 | 9.8 x 7.8 | 7.8 x 6.3 | 3.9 x 3.1 | 2.6 x 2.1 | 2 x 1.6 | 1.8 x 1.4 |
| Depth of Field | 2.5 | 1.8 | 1.5 | – | – | – | – | 0.1 |
INCH
| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
| Working Distance | 2.37 | 1.319 | 0.823 | 0.547 | 0.161 | 0.22 | 0.39 | 0.469 |
| Field of View | 0.768 x 0.614 | 0.512 x 0.409 | 0.386 x 0.307 | 0.307 x 0.248 | 0.154 x 0.122 | 0.102 x 0.083 | 0.079 x 0.063 | 0.071 x 0.055 |
| Depth of Field | 0.098 | 0.071 | 0.059 | – | – | – | – | 0.004 |
